Ranger

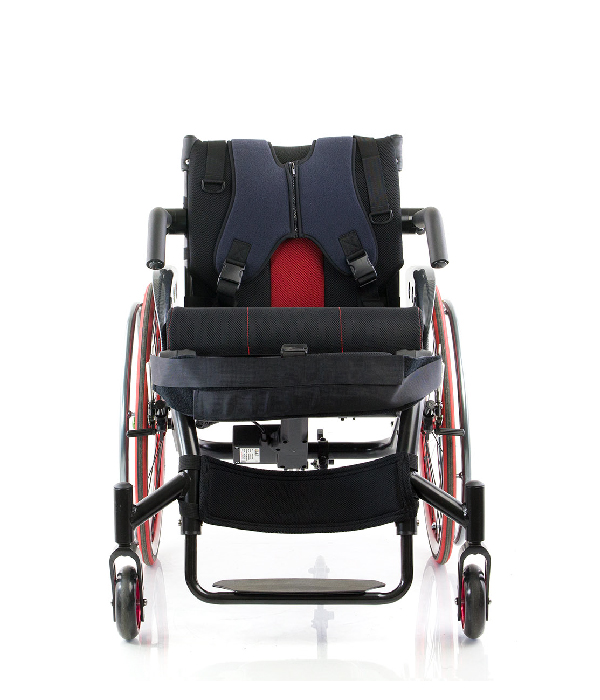

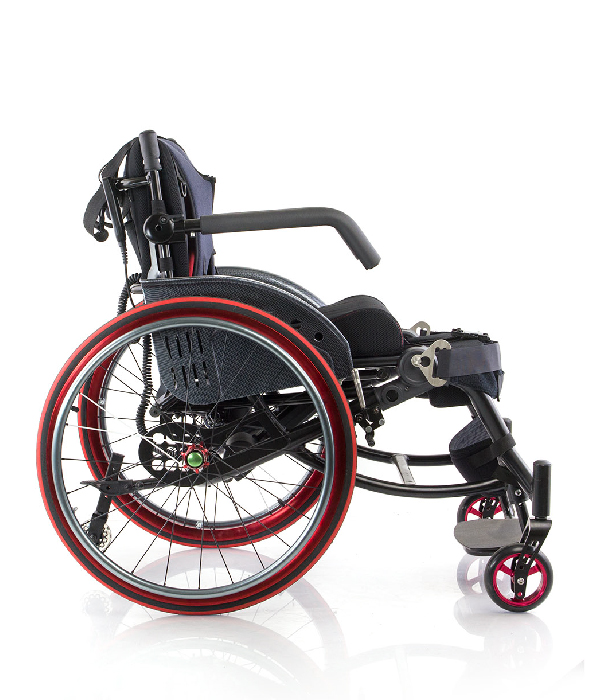

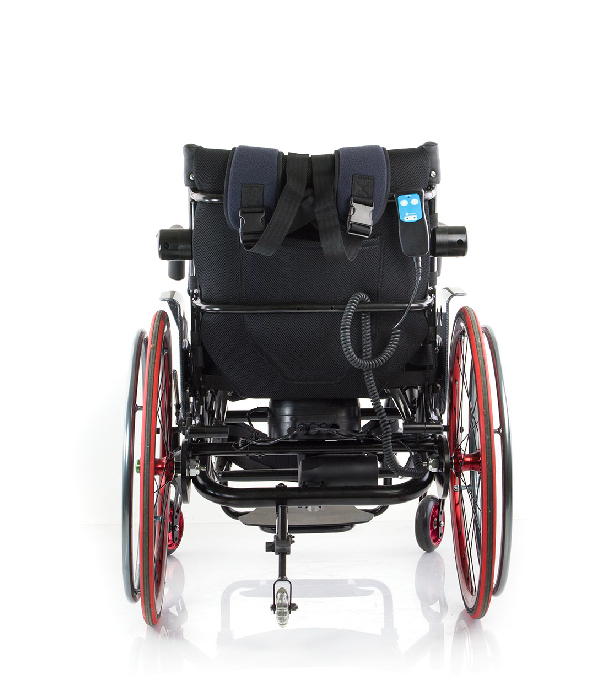

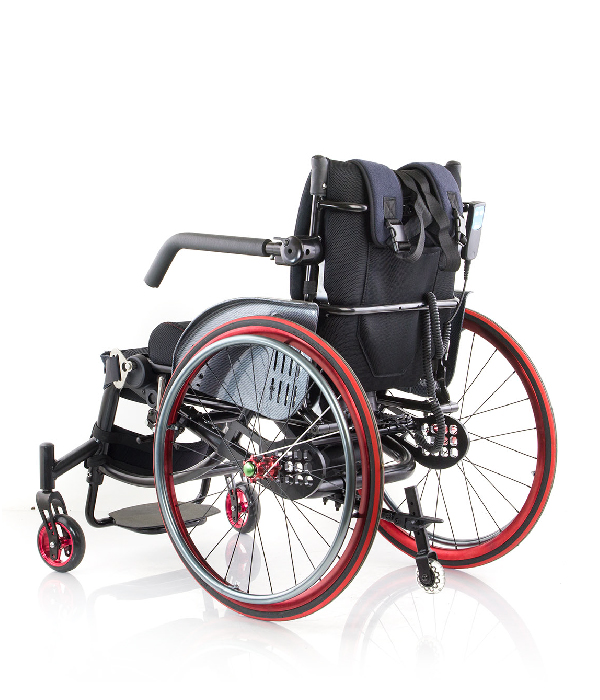

Product Name : Ranger
Product Description

User by sitting stepless adjustment to standing, in the process of lifting, can promote blood circulation and improve heart and lung function. By exchange of the pressure points to reduce the change of bedsores generated. The development and design of the electric standing wheelchair, that allows users to be adjusted at various sitting. It's an ergonomic of standing wheelchair.

Inquiry
Products
proimages/products/Standing_wheelchair/LY-ESA150/PHOTO/LY-ESA150-PHOTO-01.jpg

Overview

  • Power stand-up, manual propelling
  • Lightweight, stylish and ergonomic design
  • Seat depth & seat height adjustable
  • Front castor: 5" PU castor
  • Rear wheel: 24” Pneumatic tire
  • Wheel lock
  • Battery: 2.9 Ah
  • Max. capacity: 140 kg

feature

  • proimages/products/Standing_wheelchair/LY-ESA150/FEATURE/LY-ESA150-FEATURE-01.jpg
    Flip-back armrest
  • proimages/products/Standing_wheelchair/LY-ESA150/FEATURE/LY-ESA150-FEATURE-02.jpg

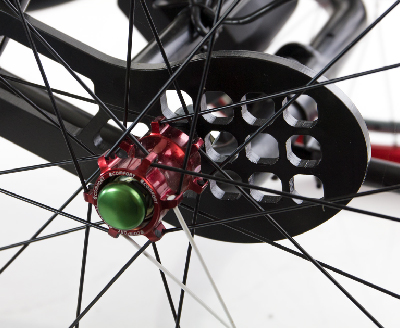

    Quick release axle
  • proimages/products/Standing_wheelchair/LY-ESA150/FEATURE/LY-ESA150-FEATURE-03.jpg

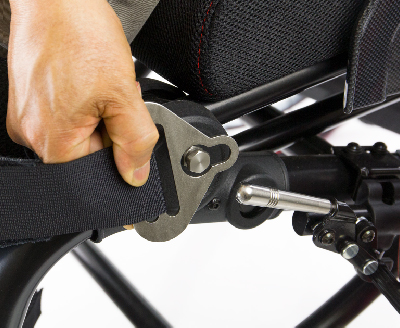

    Removable knee support
  • proimages/products/Standing_wheelchair/LY-ESA150/FEATURE/LY-ESA150-FEATURE-04.jpg

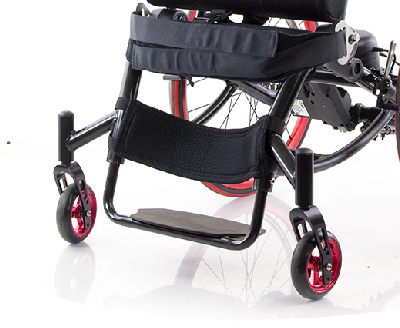

    Height adjustment footplate
  • proimages/products/Standing_wheelchair/LY-ESA150/FEATURE/LY-ESA150-FEATURE-05.jpg

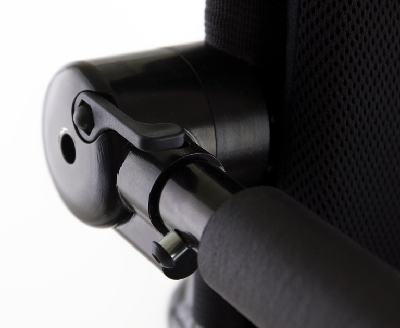

    Rotary armrest

Measurement

proimages/icon/swipe.png
SIZE L A F J
1035 mm 1010 mm 985 mm 960 mm
750 mm 700 mm 670 mm 640 mm
875/ 900/ 925 mm 875/ 900/ 925 mm 875/ 900/ 925 mm 875/ 900/ 925 mm
530/ 555/ 580 mm 530/ 555/ 580 mm 530/ 555/ 580 mm 530/ 555/ 580 mm
390/ 415/ 440/ 465 mm 390/ 415/ 440/ 465 mm 390/ 415/ 440/ 465 mm 390/ 415/ 440/ 465 mm
510 mm 460 mm 430 mm 400 mm
230 mm 230 mm 230 mm 230 mm
380 mm 380 mm 380 mm 380 mm
Front castor
(inch)		 5 5 5 5
Rear Wheel
(inch)		 24 24 24 24
N.W. (kg)
incl.battery		 25.1 24.6 24.3 24.0
