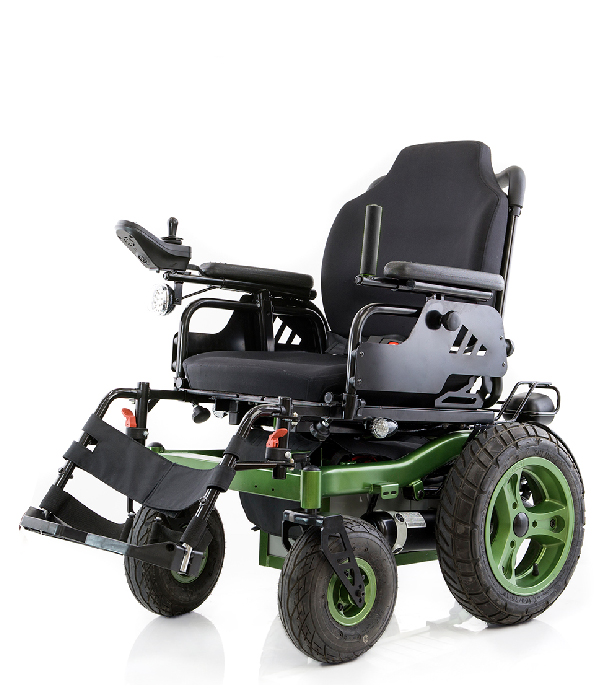

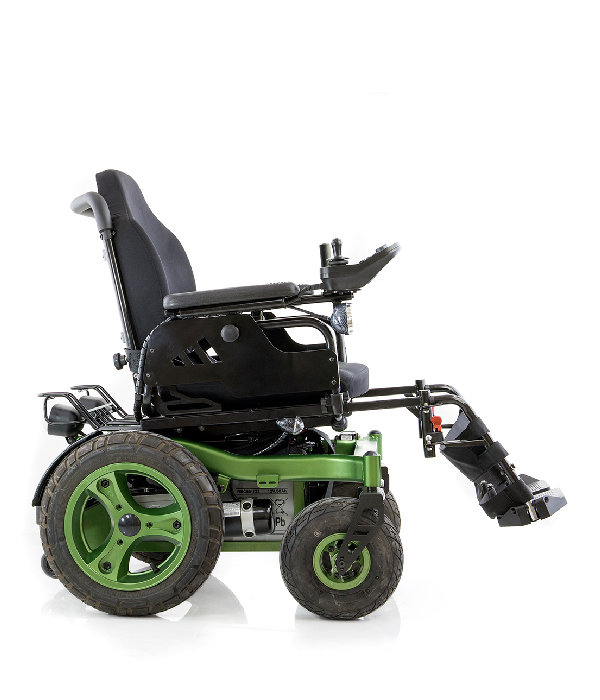

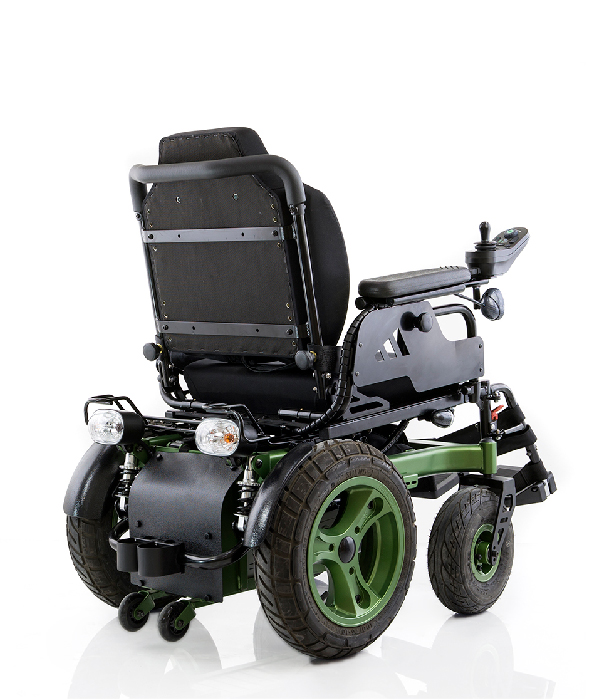

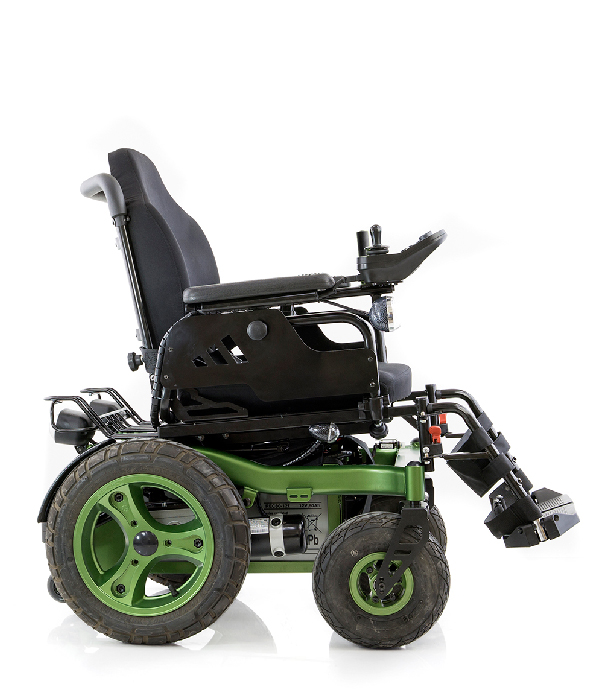

BRONCO G1
Products
Overview
- Ergonomic seat
- Backrest angle adjustable 90°/ 110°/ 130°
- Available seat width: 380, 420, 460, 510 mm

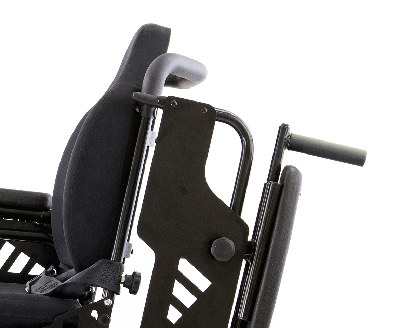

- Backrest height adjustable
- Front castor: 10" pneumatic
- Rear wheel: 16" pneumatic
- Climbing ability: 10 °
- Motor: 500 W
- Battery: 80 Ah x 12 V
- Charger: 24V/ 8A
- Traveling range: 50 km (w/75 kg load)
- Max. speed: 10 km/ h
- Max. capacity: 130 kg
feature
-

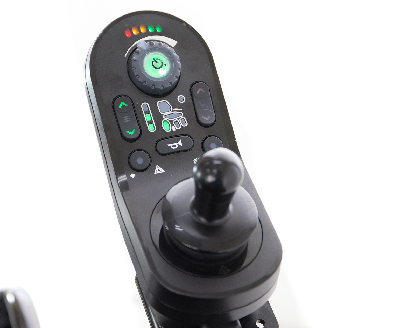

Joystick with light control -

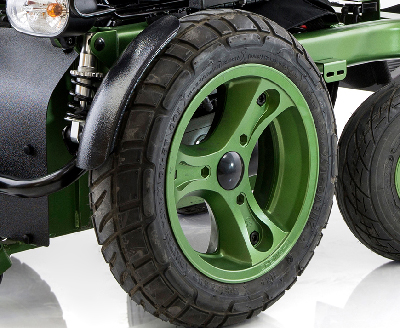

Wide and high traction tire -

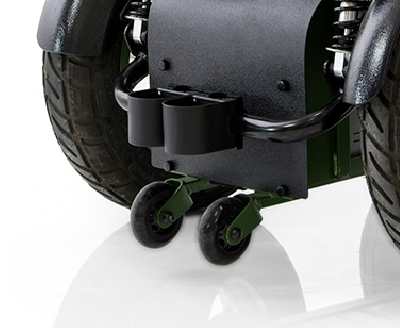

Anti-tipper w/roller -
Detachable flip back & height adjustable armrest -

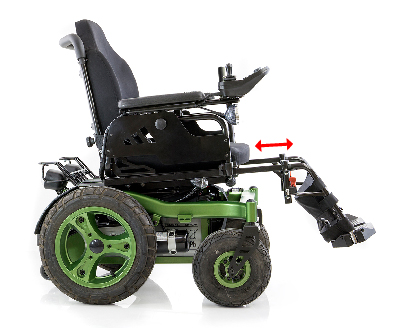

Footrest depth adjustable -

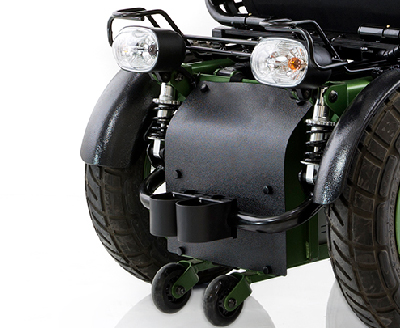

Suspension and fender -

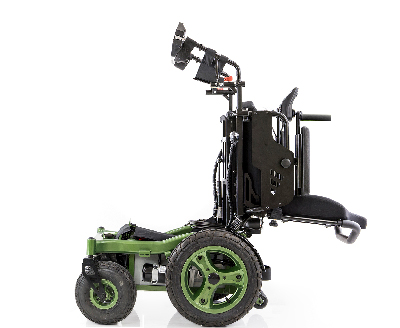

Easy maintenance mechanism -

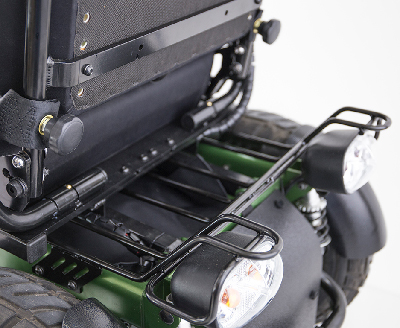

Back shelf
Option
-

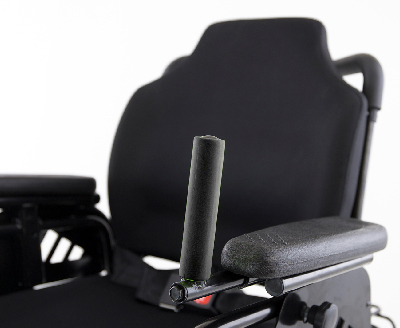

Hand grip
Measurement
| SIZE | L | A | D | S |
 |
1190 mm | 1190 mm | 1190 mm | 1190 mm |
 |
700 mm | 650 mm | 610 mm | 610 mm |
 |
998-1073 mm | 950-1025 mm | 910-985 mm | 890-965 mm |
 |
530 mm | 530 mm | 530 mm | 530 mm |
 |
500-550 mm | 460-510 mm | 430-480 mm | 410-460 mm |
 |
500 mm | 465 mm | 420 mm | 380 mm |
 |
195-255 mm | 195-255 mm | 195-255 mm | 195-255 mm |
 |
485-560 mm | 430-505 mm | 390-465 mm | 370-445 mm |
| Front castor (inch) |
10 | 10 | 10 | 10 |
| Rear Wheel (inch) |
16 | 16 | 16 | 16 |
| N.W. (kg) incl.battery |
134 | 134 | 134 | 134 |
