BRONCO LY-EB207

Product Name : BRONCO

Product Description

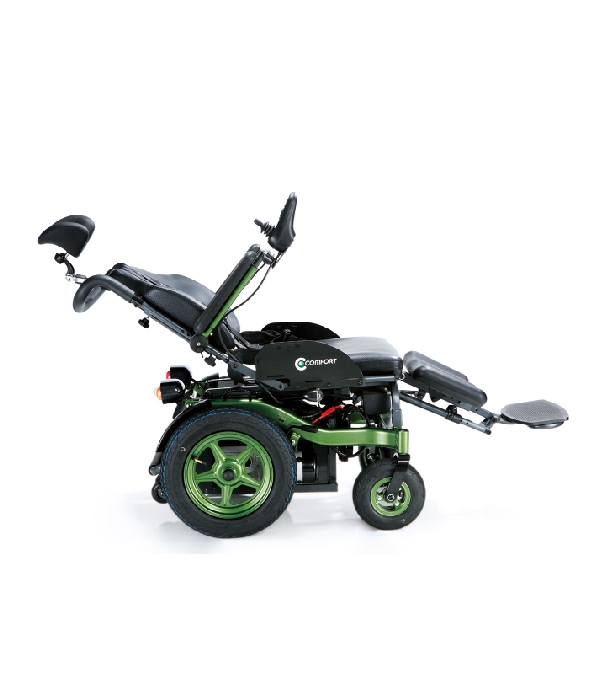

BRONCO is a power reclining wheelchair. The backrest is droved by power which give the user firm and safe experience while reclining.

Footrest with calf support at sides provide extra protection for the leg against fall down from both sides. The elevating footrest also offer the user to place their leg in different position and minimize the fatigue caused.

It's able to travel long distances without requiring an additional charge. Suspension system and pneumatic tires have shock-absorbing and reduce uncomfortable feeling while driving on uneven road.

Q'ty :

Inquiry

Products

Overview

Ergonomic seat
Electric reclining backrest
Electric elevating legrest with individual actuators
Head light and signal light controlled by joystick
Steel fixed framework with liquid coating
Electric-magnetic brakes
Front castor: 9" (2.80/2.50-4) pneumatic castor
Rear wheel: 16" (3.00-10) pneumatic tire
Motor: 550 W
Climbing ability: 10 °
Battery: 55 Ah
Charger: 8 AMP
Max. speed: 11. 4 km/ h
Max capacity: 130 kg

feature

Suspension design
Tie down anchorage
Compact size
Easy maintenance
LED indicator light
Head light
Side support
Calf support

Measurement

SIZE	L	A	D	S
	1150 mm	1150 mm	1150 mm	1150 mm
	700 mm	650 mm	620 mm	620 mm
	1240-1510 mm	1240-1510 mm	1240-1510 mm	1240-1510 mm
	560 mm	560 mm	560 mm	560 mm
	565 mm	515 mm	490 mm	465 mm
	510 mm	460 mm	420 mm	380 mm
	200-260 mm	200-260 mm	200-260 mm	200-260 mm
	585-635 mm	530-580 mm	490-545 mm	465-520 mm
Front castor (inch)	9	9	9	9
Rear wheel (inch)	16	16	16	16
N.W. (kg) incl.battery	119	116	112	109
