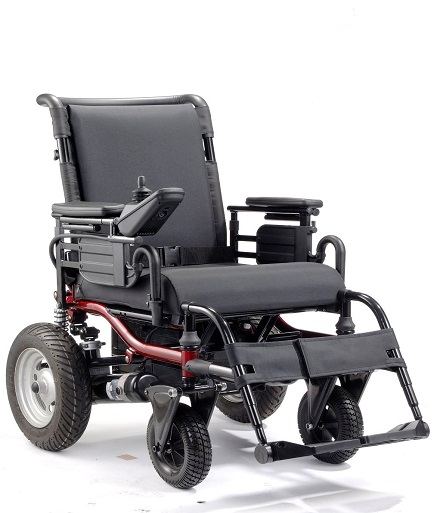

CONQUEROR (LY-EB206-RS1) LY-EB206-RS1

Product Name : CONQUEROR (LY-EB206-RS1)

Product Description

CONQUEROR is the optimal power wheelchair for users who need to sit in wheelchair for long periods of time.

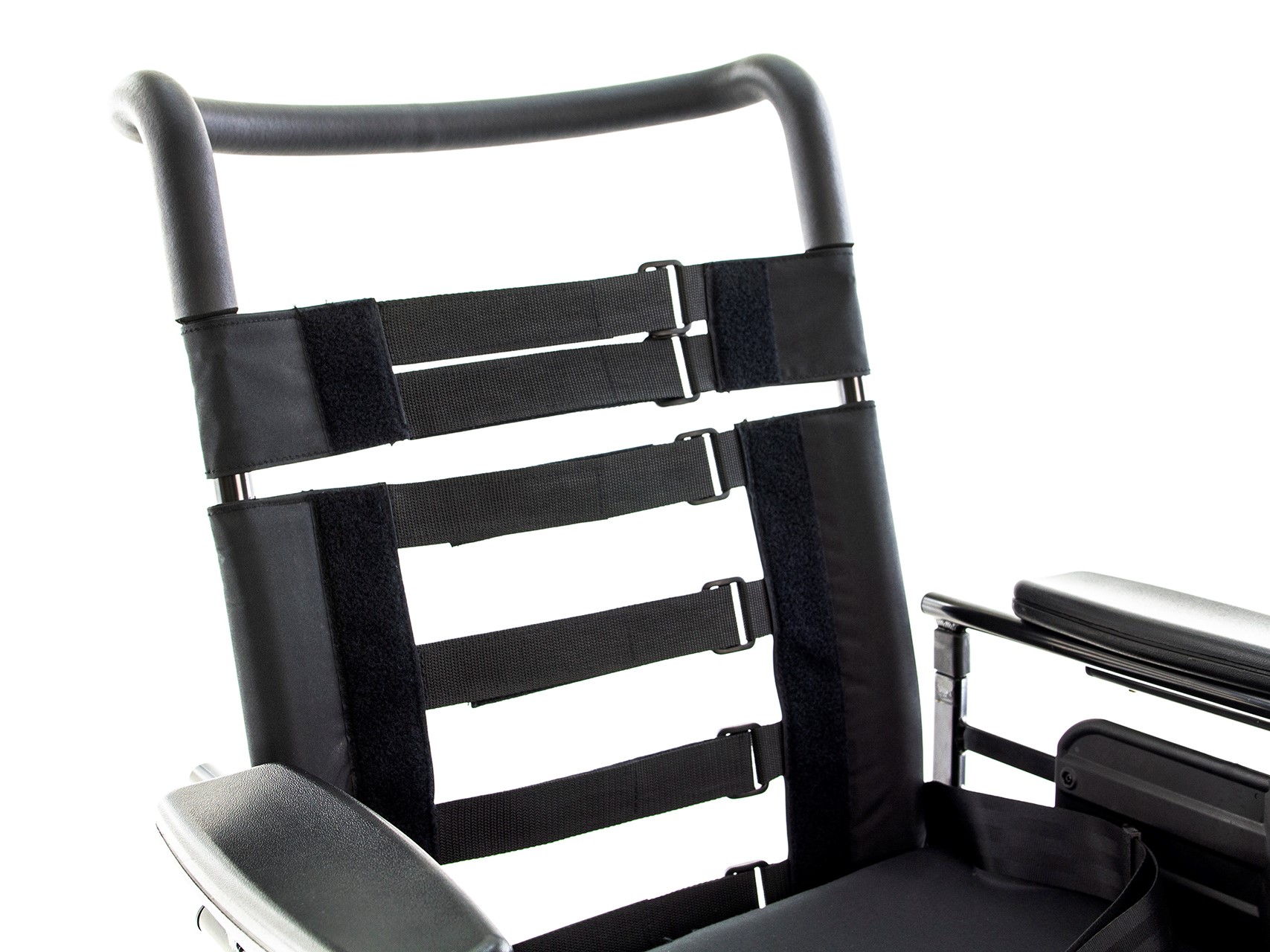

Tension-adjustable straps allow the backrest to be shaped to each individual and wide strap designed for adjustability, convenience, and support.

In addition, 14" pneumatic rear wheel with suspension system which improve performance on uneven terrain and vibration reduction. User will feel safe and comfortable driving the wheelchair over a variety of terrain and surfaces.

Q'ty :

Inquiry

Products

Overview

Rigid steel framework
Flip-back & height adjustable armrest
Detachable & swing away footrest
Angle adjustable footplate
Front castor: 9" pneumatic tire with suspension
Rear wheel: 14" (3.00/3.00-8) pneumatic tire with suspension
PG controller
Motor: 450 W x 24V
Battery: 50 Ah x 12V
Max. speed: 9.6 km/h
Max. capacity: 120 kg

Feature

Tension-adjustable straps

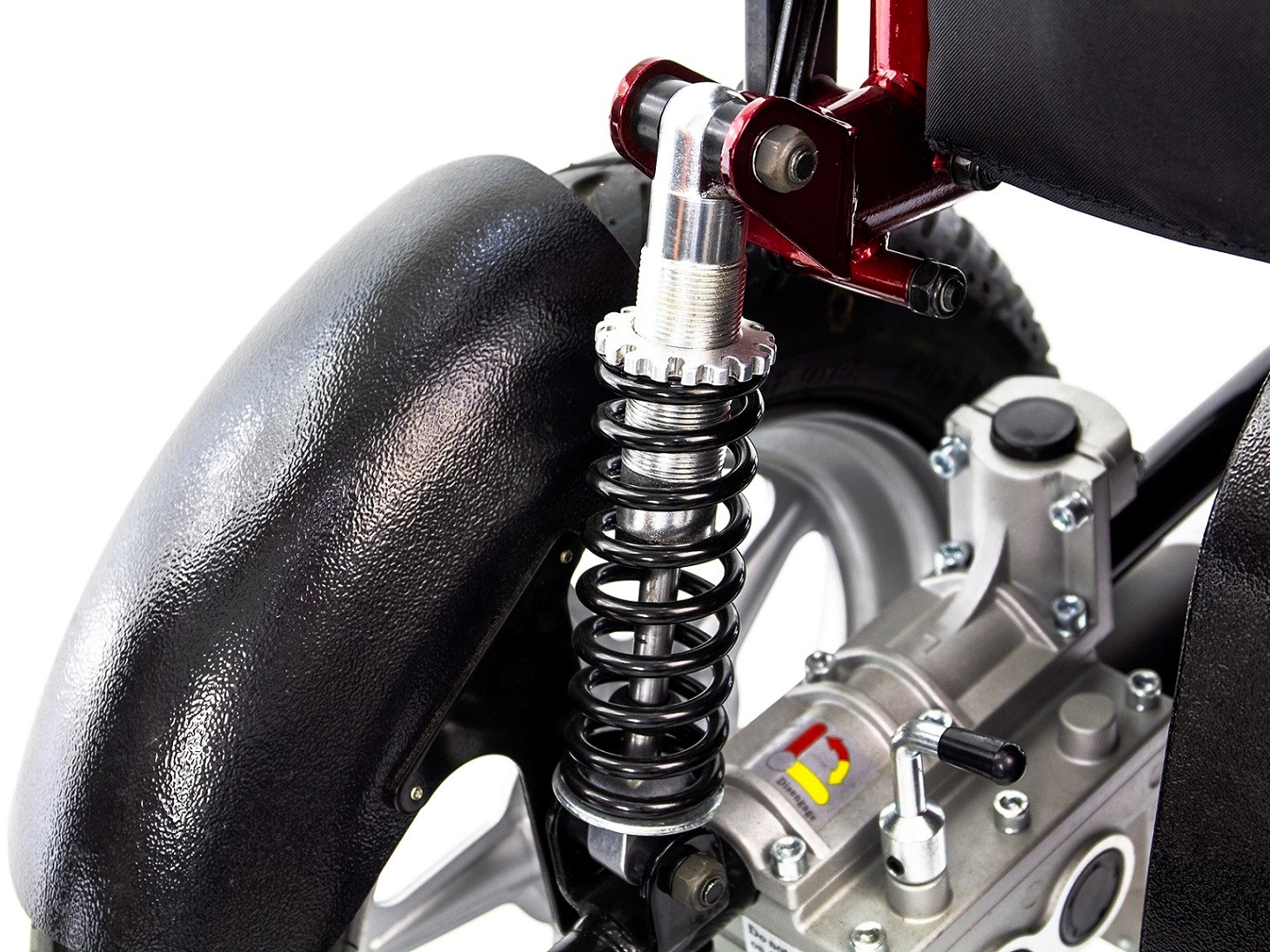

Suspension system

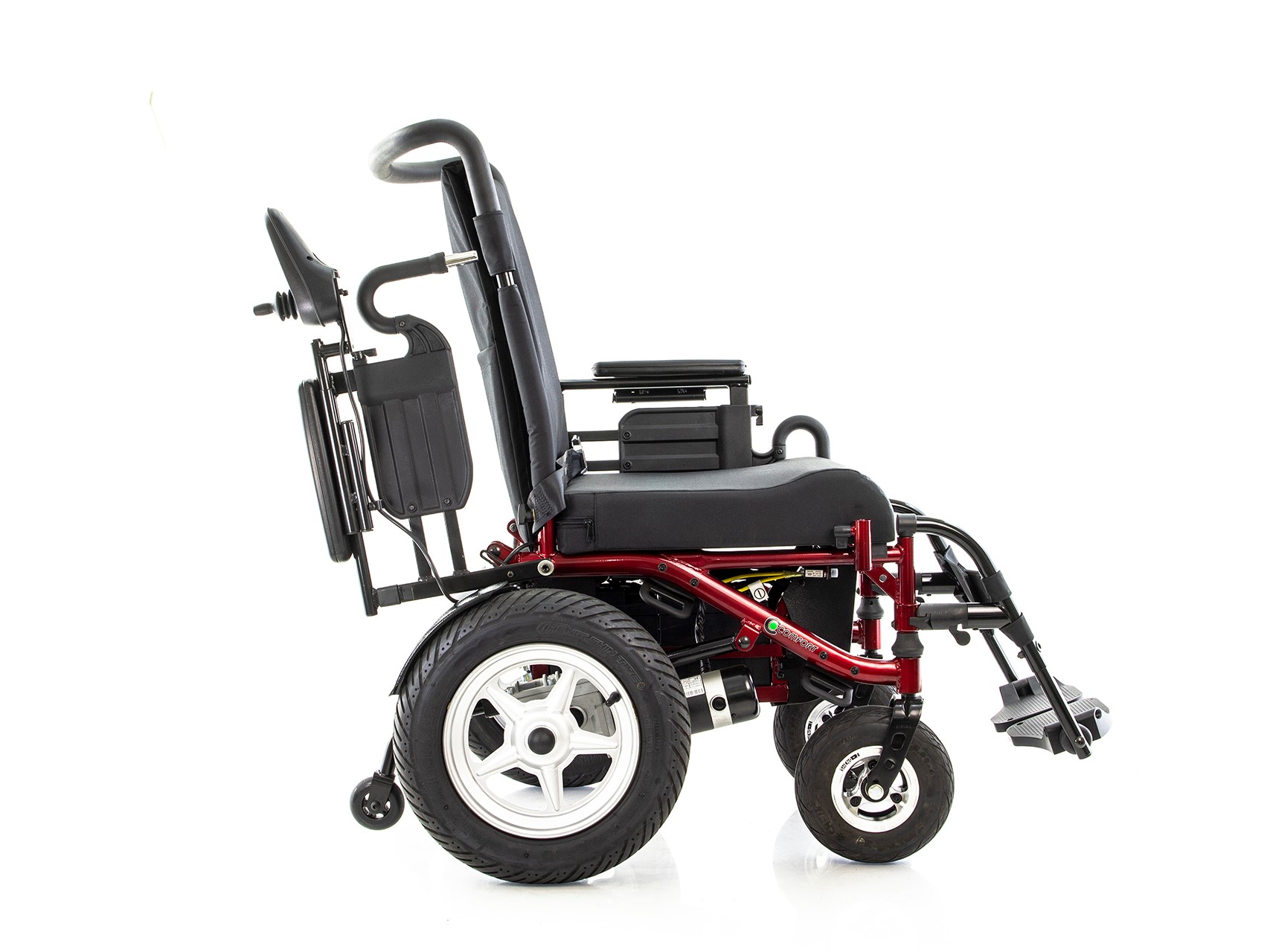

Flip-back armrest

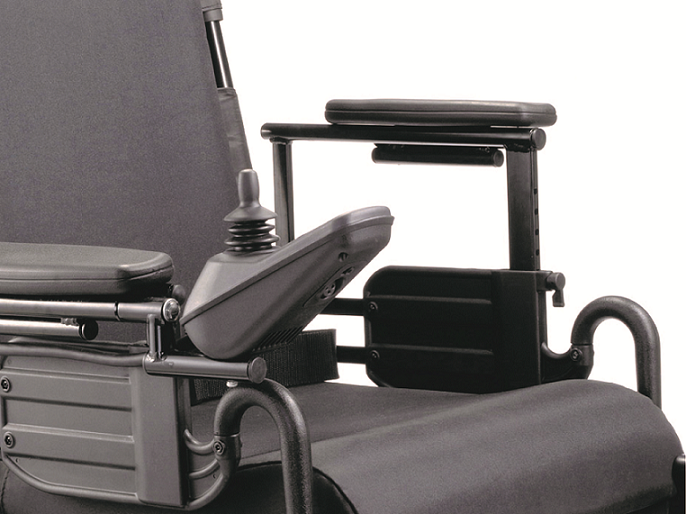

Height adjustable armrest

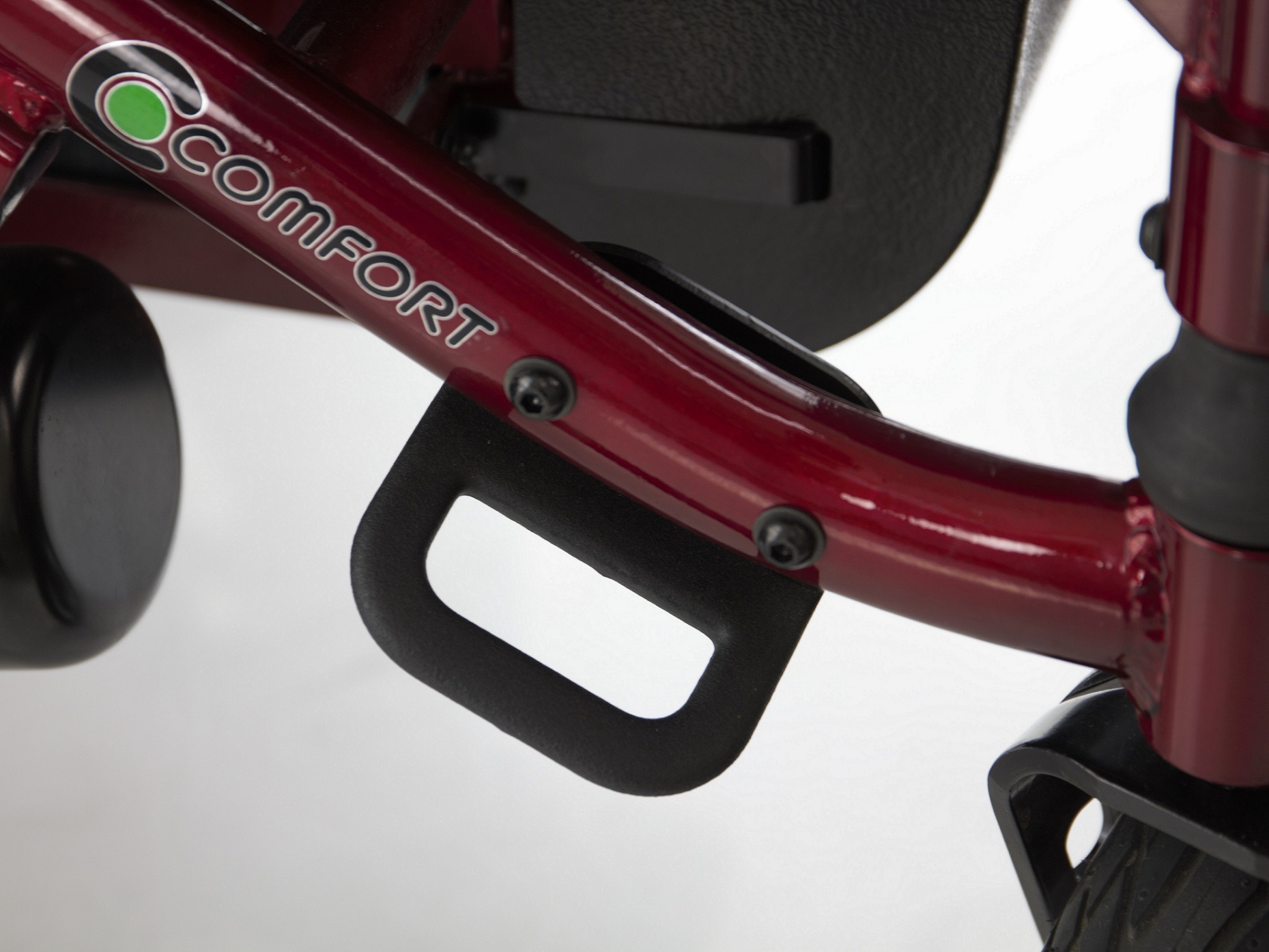

Tie down anchorage

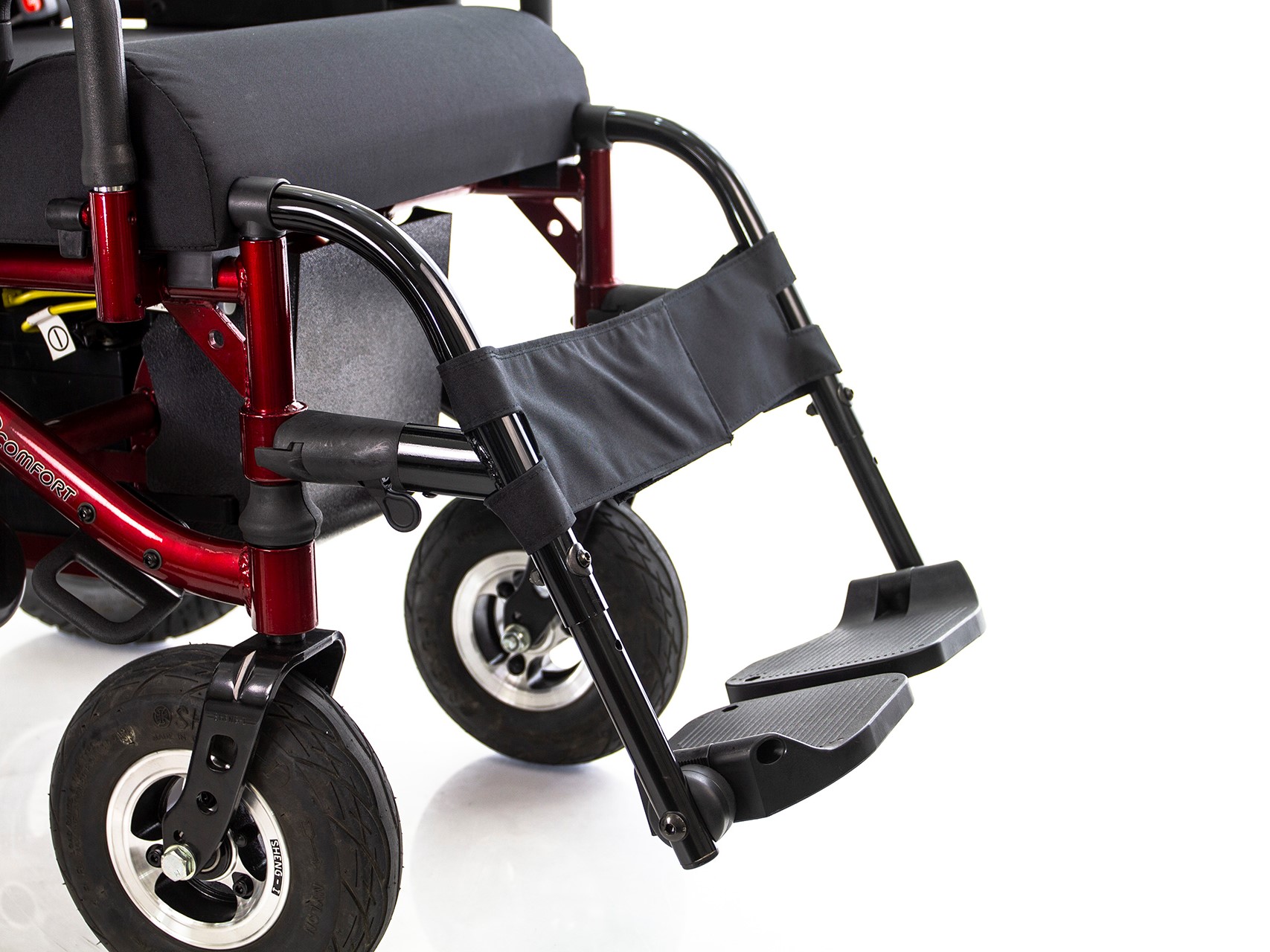

Detachable and swing away footrest

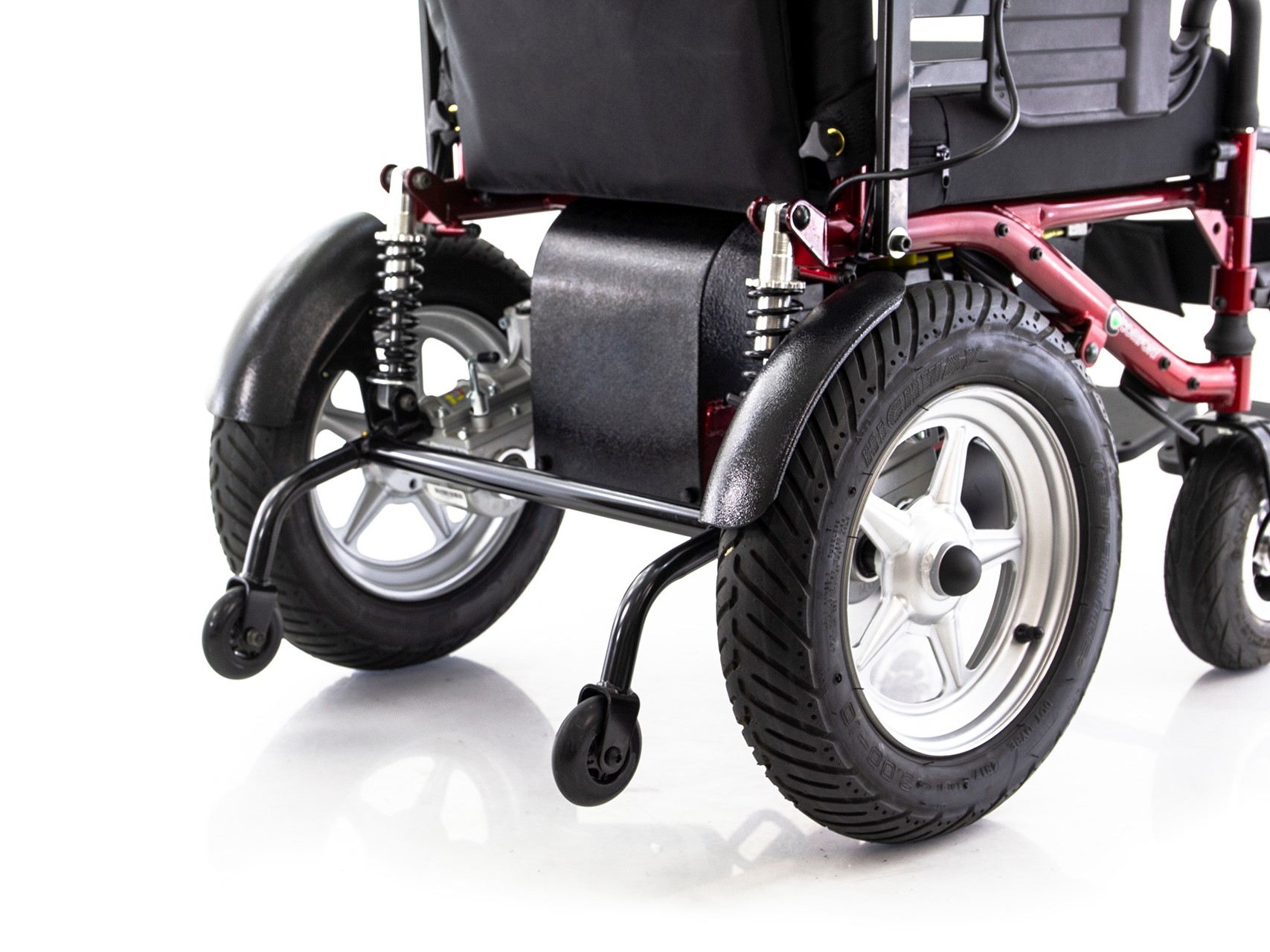

Anti-tipper with roller

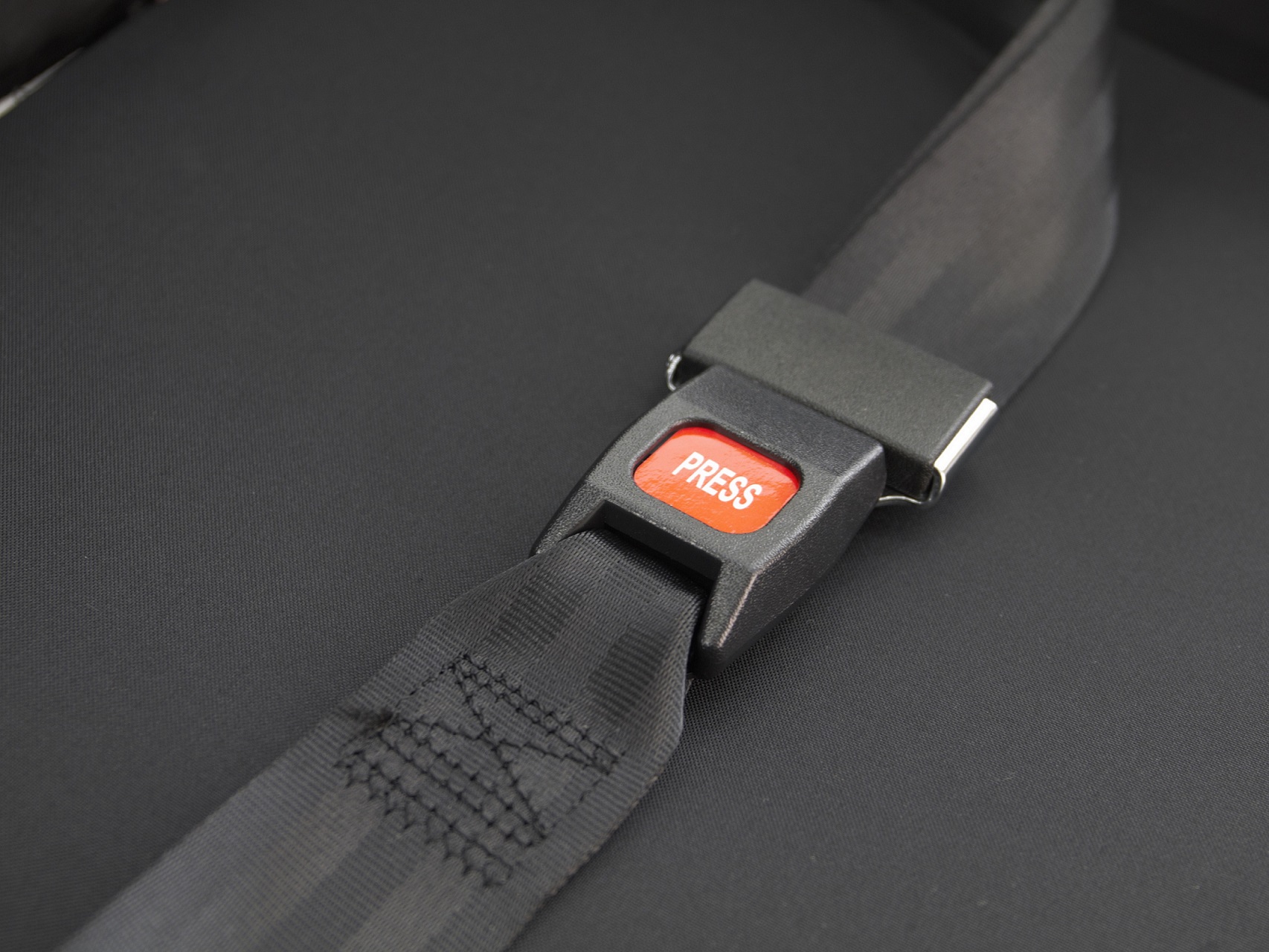

Safety belt with buckle

Option

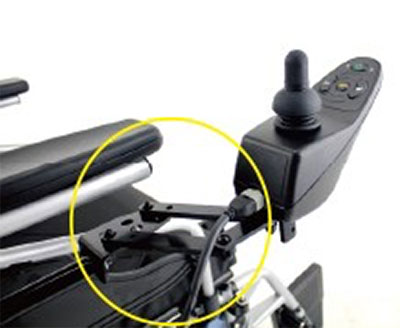

Swing away support for controller

Measurement

SIZE	A	J
	1125 mm	1125 mm
	680 mm	640 mm
	1090 mm	1090 mm
	460 mm	460 mm
	475 mm	475 mm
	485 mm	430 mm
	170-270 mm	170-270 mm
	430 mm	430 mm
Front castor (inch)	9	9
Rear Wheel (inch)	14	14
N.W. (kg) incl.battery	82	80
